Tutorial
Following is an example to implement e-Commercial Invoice issuance (RegistIssue) API by adding the POPBiLL SDK within Java setting.
1. Add POPBiLL SDK
① Download the Java – JSP SDK exemplary code from POPBiLL library and decompress it.

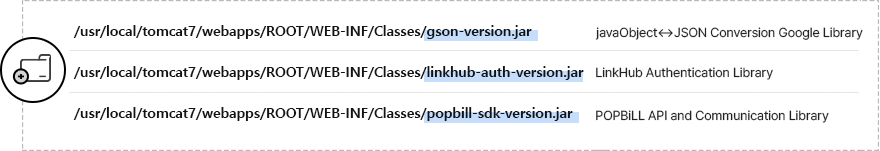

② Copy 3 jar files from the folder within the WEB-INF/lib/ of SDK exemplary code and paste it to the project library folder.
2. POPBiLL SDK Setting
For e-Commercial Invoice service configuration setting, generate “$CATALINA_HOME?webapps/ROOT/common.jsp” file within the file path of the project. Then, complete the setting of the authentication information by referring to the code below.
<%-- Generate e-Commercical Invoice Service Class Bean --%>
<jsp:useBean id="statementService" scope="application" class="com.popbill.api.statement.StatementServiceImp" />
<%-- LinkID – enter the provided API credentials information --%>
<jsp:setProperty name="statementService" property="linkID" value="TESTER" />
<%-- SecretKey– enter the provided API credentials information --%>
<jsp:setProperty name="statementService" property="secretKey" value="SwWxqU+0TErBXy/9TVjIPEnI0VTUMMSQZtJf3Ed8q3I=" />
<%-- STAGE configuration setting, true – TEST , false – PRODUCTION --%>
<jsp:setProperty name="statementService" property="test" value="true" />
<%-- Whether to register the Authentication token registration IP or not (On/Off), --%>
<%-- true – On(default-recommended), false - Off – PRODUCTION --%>
<jsp:setProperty name="statementService" property="IPRestrictOnOff" value="true" />
<%-- Whether to use static IP or not, --%>
<%-- true – use static IP, false – do not use static IP(default) --%>
<jsp:setProperty name="statementService" property="useStaticIP" value="false"/>
<%-- Whether to use local system time or not, --%>
<%-- true – use (default – recommended), false – do not use --%>
<jsp:setProperty name="statementService" property="useLocalTimeYN" value="true"/>3. Implement RegistIssue Function
Generate the “$CATALINA_HOME/webapps/ROOT/RegistIssue.jsp” file. Then, add the code to call API by referring to the example below.
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8" />
<title>Popbill Statement Example</title>
</head>
<%@ include file="common.jsp" %>
<%@page import="java.util.Map"%>
<%@page import="java.util.HashMap"%>
<%@page import="java.util.ArrayList"%>
<%@page import="com.popbill.api.Response"%>
<%@page import="com.popbill.api.PopbillException"%>
<%@page import="com.popbill.api.statement.Statement"%>
<%@page import="com.popbill.api.statement.StatementDetail"%>
<%
// [Seller] business registration number
String corpNum = "1234567890";
// [Seller] POPBiLL ID
String testUserID = "testkorea";
// Title of a notification mail, default if not entered
String emailSubject = "Email Subject";
// Memo
String memo = "Memo";
// E-Commercial invoice information object
Statement statement = new Statement();
// [Mandatory] date of preparation, format : yyyyMMdd
statement.setWriteDate("20220101");
// [Mandatory] payments received or not, select either [영수(paid), 청구(charge),없음(none)]
statement.setPurposeType("영수");
// [Mandatory] tax type, enter either {과세,영세,면세}.
// *과세 : taxable, 영세 : zero-rated, 면세 : exempted
statement.setTaxType("과세");
// Custom form code, default if not entered.
statement.setFormCode("");
// [Mandatory] types of invoice,
// [121 – transaction details], [122- bill],
// [123 – estimate], [124 – purchase order],
// [125 – deposit slip], [126 – receipt]
statement.setItemCode((short) 121);
// [Mandatory] document ID,
// combination of 1~24 alphanumeric characters(number, alphabet, ‘-’, ‘_’)
statement.setMgtKey("ABC0226-TEST001");
/***************************************************************************
* Sender Information
****************************************************************************/
// [Sender] business registration number
statement.setSenderCorpNum(testCorpNum);
// [Sender] company name
statement.setSenderCorpName("Sender Company Name");
// [Sender] company address
statement.setSenderAddr("Sender Address");
// [Sender] CEO name
statement.setSenderCEOName("Sender Company's CEO Name");
// [Sender] branch number, 4-digits, optional entry
statement.setSenderTaxRegID("");
// [Sender] items of business
statement.setSenderBizClass("Sender Business Class");
// [Sender] type of business
statement.setSenderBizType(Sender Business Type");
// [Sender] name of the person in charge
statement.setSenderContactName("Sender Contactor Name");
// [Sender] email of the person in charge
statement.setSenderEmail("test@test.com");
// [Sender] contact number of the person in charge
statement.setSenderTEL("070-7070-0707");
// [Sender] cell phone number of the person in charge
statement.setSenderHP("010-000-2222");
/***************************************************************************
* Receiver Information
****************************************************************************/
// [Receiver] business registration number
statement.setReceiverCorpNum("8888888888");
// [Receiver] company name
statement.setReceiverCorpName("Receiver Company Name");
// [Receiver] CEO name
statement.setReceiverCEOName("Receiver Company's CEO Name");
// [Receiver] company address
statement.setReceiverAddr("Receiver Address");
// [Receiver] items of business
statement.setReceiverBizClass("Receiver Business Class");
// [Receiver] type of business
statement.setReceiverBizType("Receiver Business Type");
// [Receiver] name of the person in charge
statement.setReceiverContactName("Receiver Contactor Name");
// [Receiver] email
// Do not include the email address of an actual customer
// POPBiLL sends an instructional email in the TEST stage as well
statement.setReceiverEmail("test@test.com");
/***************************************************************************
* Information of e-Commercial Invoice
****************************************************************************/
// [Mandatory] total amount of supply value
statement.setSupplyCostTotal("400000");
// [Mandatory] total amount of tax
statement.setTaxTotal("40000");
// [Mandatory] total amount. supply value + tax
statement.setTotalAmount("440000");
// Serial number
statement.setSerialNum("123");
// Remark
statement.setRemark1("Remark1");
statement.setRemark2("Remark2");
statement.setRemark3("Remark3");
/*********************************************************************
* Item Information of e-Commercial Invoice
*********************************************************************/
// Array of list of detailed item information
statement.setDetailList(new ArrayList<StatementDetail>());
StatementDetail detail = new StatementDetail();
detail.setSerialNum((short) 1); // Serial number, write sequentially starting from 1
detail.setItemName("Item1"); // Item name
detail.setPurchaseDT("20211125"); // Date of trade
detail.setQty("1"); // Quantity
detail.setSupplyCost("200000"); // Supply value
detail.setTax("20000"); // Tax
statement.getDetailList().add(detail);
detail = new StatementDetail();
detail.setSerialNum((short) 2); // Serial number, write sequentially starting from 1
detail.setItemName("Item2"); // Item name
detail.setPurchaseDT("20211125"); // Date of trade
detail.setQty("1"); // Quantity
detail.setSupplyCost("200000"); // Supply value
detail.setTax("20000"); // Tax
statement.getDetailList().add(detail);
/***************************************************************************
* Additional properties of e-Commercial Invoice
****************************************************************************/
Map<String, String> propertyBag = new HashMap<String, String>();
propertyBag.put("Balance", "15000"); // Amount before deposit
propertyBag.put("Deposit", "5000"); // Deposit amount
propertyBag.put("CBalance", "20000"); // Remaining amount
statement.setPropertyBag(propertyBag);
Response CheckResponse = null;
try {
CheckResponse = statementService.registIssue(corpNum, statement, memo, testUserID, emailSubject);
} catch (PopbillException pe) {
// If an exceptional error occurs,
// check the error code with pe.getCode()
// and check the error message with pe.getMessage()
System.out.println("Error Code : " + pe.getCode());
System.out.println("Error Message : " + pe.getMessage());
throw pe;
}
%>
<body>
<p>Response</p>
<br/>
<fieldset>
<legend>Statement Issuance</legend>
<ul>
<li>Response Code (Response.code) : <%=CheckResponse.getCode()%></li>
<li>POPBiLL confirm number (Response.message) : <%=CheckResponse.getMessage()%></li>
</ul>
</fieldset>
</body>
</html>4. Check the Result
If the API calling is being processed successfully, Response code will be returned as “1” and if it fails, an error code(8-digits that starts with “-”) and error message will be returned to POPBiLL Exception. [Error Code]
